SOLAR MD SS4143 ADVANCED LITHIUM ION BATTERY- Signwaves Electronics

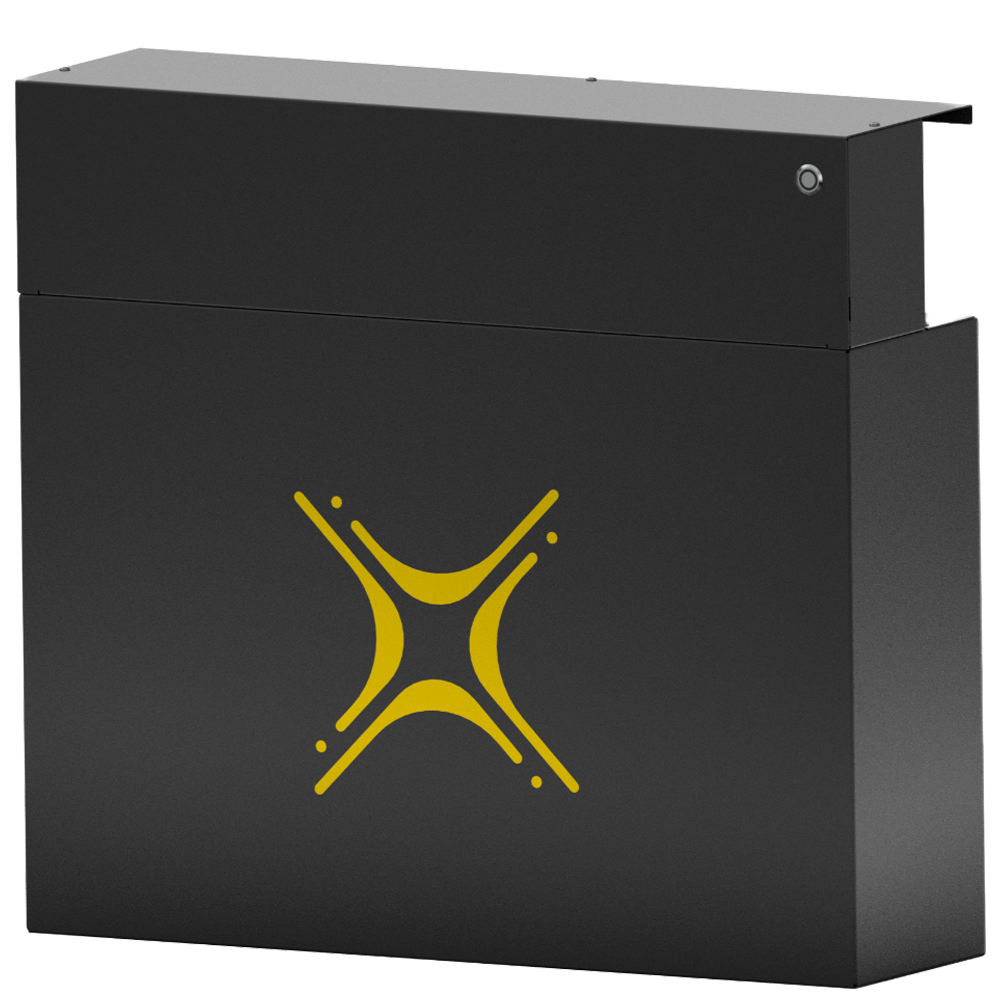

SOLAR MD SS4143 ADVANCED LITHIUM ION BATTERY

The SS4143 relies on Lithium Iron-Phosphate battery for streamlined energy storage. You can use 1 to 30 batteries on the wall during the setup. The Solar MD 14.3kWh features different storage capacities according to user requirements. We can increase capacity through parallel connection of the batteries. This will enable you to use from14.3kWh to 429kWh setup.

SS4143 SYSTEM FEATURES

It’s a flexible solution for both small configurations and mid-sized configurations.
It supports both parallel connections and CAN communications.
A modular design.
It is very easy to install.
A universal Wall-mounted system.

SS4143 APPLICATIONS

Residential PV Installations for household energy demands.
Residential and commercial UPS systems.
Used with the addition of an external battery inverter.
OFF-GRID energy system.
We use the standard SS4143 battery all over the African market for energy storage applications.
We supply the battery with the world-leading LiFeP04 technology.

SS4143 BATTERY FEATURES

Excellent safety.
Long life cycle.
High energy density.
Stable discharge platform.
High charge & discharge rate.
Highly efficient.

SS4143 MULTICOLOURED MULTIPURPOSE BUTTON

The new Solar MD Multipurpose button has an extended functionality in combination with the BMS-EX 3. They can use the Multipurpose Button to execute 6 pre-defined functions and a shutdown instruction. It is combined with the 6 level Indicator LEDs on BMS-EX v3. The user can choose between each function by holding the button until the LEDs count to match the number of the function. By releasing the button while moving through the functions, LEDs will start blinking and wait for the user to press the button again within 3 seconds.
Advanced indication functionality allows the user to choose between 5 different states. It also allows mixed combinations when a combination of multiple batteries with BMS-EX 3 are used. The user can change the preferred stage by logging into their mypower24 Energy Portal and going to the battery settings.
When this state has been selected, the button, in effect, will show a static illumination in a colour based on the state of charge. From RED at 0% SoC (State of Charge) to GREEN at 100% state of charge.
